Climber 7.15 - 7.18
Hydrostatic brush-cutter with a single blade cutter deck with differential lock and service brakes on four wheels, ideal for cutting high grass, bushes and shrubs on slopes and irregular ground. The Grillo Climber 7 can safely climb slopes and is very efficient in maintaining overgrown, neglected areas, agricultural areas and lawns.
The extreme maneuverability, smooth steering and speed let the machine work quickly and efficiently while remaining simple and easy to operate. The single-blade cutter deck has a cutting width of 85 cm. The steering radius is extremely small, only 45 cm, allowing the operator to mow in tight areas. The front axle and the tractor type tires ensure both a firm grip and traction on irregular and low-adherence ground
Climber 7.15 has a 12 HP (15 HP gross power) petrol engine whilst the Climber 7.18 has a 15.2 HP (18 HP gross power) petrol engine. The 7 ltr fuel tank has a built-in fuel indicator on the cap. Transmission consists of a hydrostatic axle with an oil cooling fan, which is necessary to improve the transmission performance by reducing its working temperature.
The mechanical diff-lock is standard and operated via a foot pedal. This device is indispensable for working on low-adherence slopes and in the case of extremely uneven ground. Solid cutter deck front wheel, puncture-proof!
| Engine | HP-kW | Fuel Tank Capacity (L) | Diff. Lock | Gearbox | Turning Radius | Cutting Height | Cutting Width | Weight | |
| 7.15 | GR 452 GRILLO | HP 12(*15) kW 9.2 | 7 (7.4) | YES | Hydrostatic transmission 0 - 9 km/h (0 - 5.6 mph) | 45 cm (18 in) | 35...85 mm (1.3...3.3 in) | 85 cm (33.5 in) | 250 (551) |
| 7.18 | INTEK 7180 B&S | HP 15.2-kW 11.2 | 7 (7.4) | YES | Hydrostatic transmission 0 - 9 km/h (0 - 5.6 mph) | 45 cm (18 in) | 35...85 mm (1.3...3.3 in) | 85 cm (33.5 in) | 255 (562) |
Climber 8.22
Grillo Climber 8.22 is a hydrostatic single-blade brush-cutter featuring innovative components resulting in excellent performance. It has a professional hydrostatic axle with integrated differential lock and service brake on the 4 wheels, an electromagnetic clutch, light and smooth steering, a cutter deck with internal baffles to evenly distribute the cut grass, a wider cutting height range to make transfers and driving over kerbs and bumps easier, bigger wheels 3.50-6.
Impressive performance on slopes and when cutting shrubs and high grass. Widely used in agriculture and ideal in vineyards, olive groves and underneath foliage. 60cm steering radius. Transfer speed ranges from 0 up 10 km/h. The rear wheels 18×9.50-8 are comfortable and totally safe on slopes.
| Engine | HP-kW | Fuel Tank Capacity (L) | Diff. Lock | Gearbox | Turning Radius | Cutting Height | Cutting Width | Weight | |
| 8.22 | 7220 Prof. Series B&S | HP 18-kW 13.2 | 7 (7.4) | YES | Hydrostatic transmission 0 - 10 km/h (0 - 6.2 mph) | 60 cm (23.6 in) | 35...110 mm (1.3...4.3 in) | 91 cm (36 in) | 290 (639) |
Climber 9.18 - 9.22
This very robust single-blade hydrostatic brush-cutter is equipped with a differential lock and service brake on the 4 wheels and is ideal to cut high grass and woody type shrubs on slopes and uneven ground. Climber 9 can climb slopes in maximum safety and is very efficient in maintaining overgrown, neglected areas, agricultural areas as well as lawns and is highly recommended for intensive use.
Its extreme maneuverability, smooth, light steering and fast working speed allow this machine to work efficiently whilst remaining simple and easy to operate. Climber 9 is a compact brush-cutter with a low center of gravity and perfect weight distribution, designed to ensure maximum stability and greater safety for the operator under most working conditions even on slopes.
Climber 9.22 is equipped with an 18 HP (22 HP Gross Power) Prof. Series Intek 7220 petrol engine with comfort a seat, armrests and “high” roll-bar. Climber 9.18 is equipped with a 15.2 HP (18 HP Gross Power) Prof. Series Intek 7180 petrol engine with suspension seat and “low” roll-bar.
Both engines have twin cast-iron cylinders, OHV, 656 cc and both ensure low emissions, reduced consumption and vibrations and high performance. The front axle and tractor tires allow both firm grip and traction on irregular and low adherence ground. Climber 9 tackles steep slopes safely and feasily!
| Engine | HP-kW | Fuel Tank Capacity (L) | Diff. Lock | Gearbox | Turning Radius | Cutting Height | Cutting Width | Weight | |
| 9.18 | INTEK 7180 B&S | HP 15.2 - kW 11.2 | 13 (13.7) | YES | Hydrostatic transmission 0 - 10 km/h (0 - 6.2 mph) | 38 cm (15 in) | 30...90 mm (1.2...3.5 in) | 91 cm (36 in) | 297 (655) |
| 9.22 | 7220 Prof. Series B&S | HP 18 - kW 13.2 | 13 (13.7) | YES | Hydrostatic transmission 0 - 10 km/h (0 - 6.2 mph) | 38 cm (15 in) | 30...90 mm (1.2...3.5 in) | 91 cm (36 in) | 297 (655) |

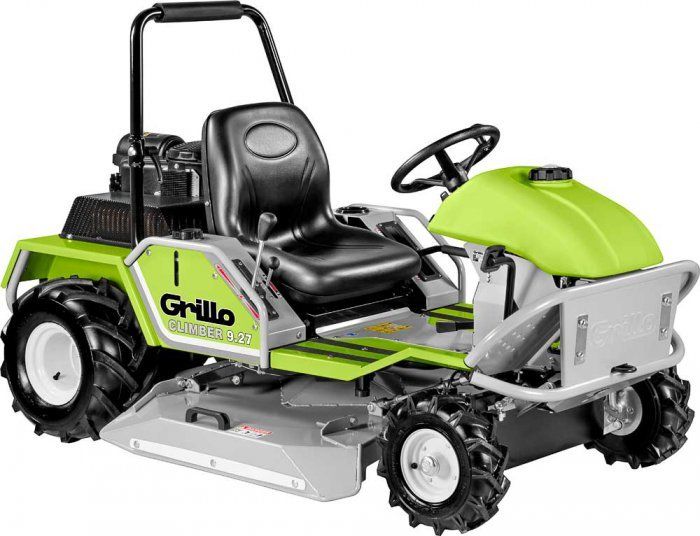

Climber 9.27
Climber 9.27 is the top model of the Climber 9 range, specifically designed for the green professional operator aiming at boosting productivity under the most difficult conditions. Its key features are a more powerful engine, higher working speed (11,5 km/h), a larger cutting deck (98 cm) equipped with more robust side baffles, bigger front and rear wheels (rear 18×8.50-8 – front 3.50-6).
These wheels increase the ground clearance to 8 cm and the max. cutting height to 13,5 cm. Climber 9.27 has a 22 HP (27 HP Gross Power) 8270 Commercial Turf series petrol engine. Climber 9.27 takes on steep slopes safely and easily! The front wheel spindles are fitted with bearings to make the steering smoother, the steering radius is 70 cm. Electromagnetic clutch. The hydraulic oil cooling coil is larger and the hydraulic tank, which is located behind a side dashboard, can be easily checked.
| Engine | HP-kW | Fuel Tank Capacity (L) | Diff. Lock | Gearbox | Turning Radius | Cutting Height | Cutting Width | Weight | |
| 9.27 | 8270 Commercial Series B&S | HP 22 - kW 16.2 | 13 (13.7 | YES | Hydrostatic transmission 0 - 11,5 km/h (0 - 7.1 mph) | 70 cm (27.5 in ) | 35...135 mm (1.4...5.3 in) | 98 cm (38 in) | 358 (789) |
Climber 10 - AWD 22 - AWD 27
Grillo Climber 10 AWD 22 and 10 AWD 27 are truly unique hydrostatic brush-cutters. Their permanent 4WD system and powerful engines make these machines superb on severe slopes and low-adherence ground. Remarkably efficient on high grass and up to 2,5 cm diametre shrubs, these machines are ideal both for agricultural and professional use.
Their compact dimension has been designed to boost their performance on slopes and the Kanzaki hydrostatic transmission with differential lock on the rear wheels allow the operator to work with maximum safety, reliability and unmatched stability under any working condition
The cutting height adjustment is via a lever with automatic locking of the chosen height position. The cutter deck stops in the chosen position when the lever is released. Blades are engaged via an electric switch located near to the steering wheel and controlled via an electromagnetic clutch fitted with a blade brake. The single-blade cutter deck has a working width of 93 cm for the AWD 22 and 98 cm for the AWD 27.
The progressive and assisted cutting height range from 3,5 to a max 13,5 cm, is locked automatically in the chosen position. This 10 cm range allows the operator to easily negotiate kerbs and obstacles and allows them to work on uneven ground. The whole cutting system is always kept parallel to the ground, this ensures top cutting quality even after years of service.
| Engine | HP-kW | Fuel Tank Capacity (L) | Diff. Lock | Gearbox | Turning Radius | Cutting Height | Cutting Width | Weight | |
| AWD 22 | 7220 Prof. Series B&S | HP 18 - kW 13.2 | 13 (13.7) | YES | Hydrostatic transmission 0 - 9 km/h (0 - 5.6 mph) | 70 cm (27.5 in) | 35...135 mm (1.4...5.3 in) | 93 cm (36.6 in) | 345 (761) |
| AWD 27 | 8270 Commercial Series B&S | HP 22 - kW 16.2 | 13 (13.7) | YES | Hydrostatic transmission 0 - 9 km/h (0 - 5.6 mph) | 70 cm (27.5 in) | 35...135 mm (1.4...5.3 in) | 93 cm (36.6 in) | 385 (849) |
